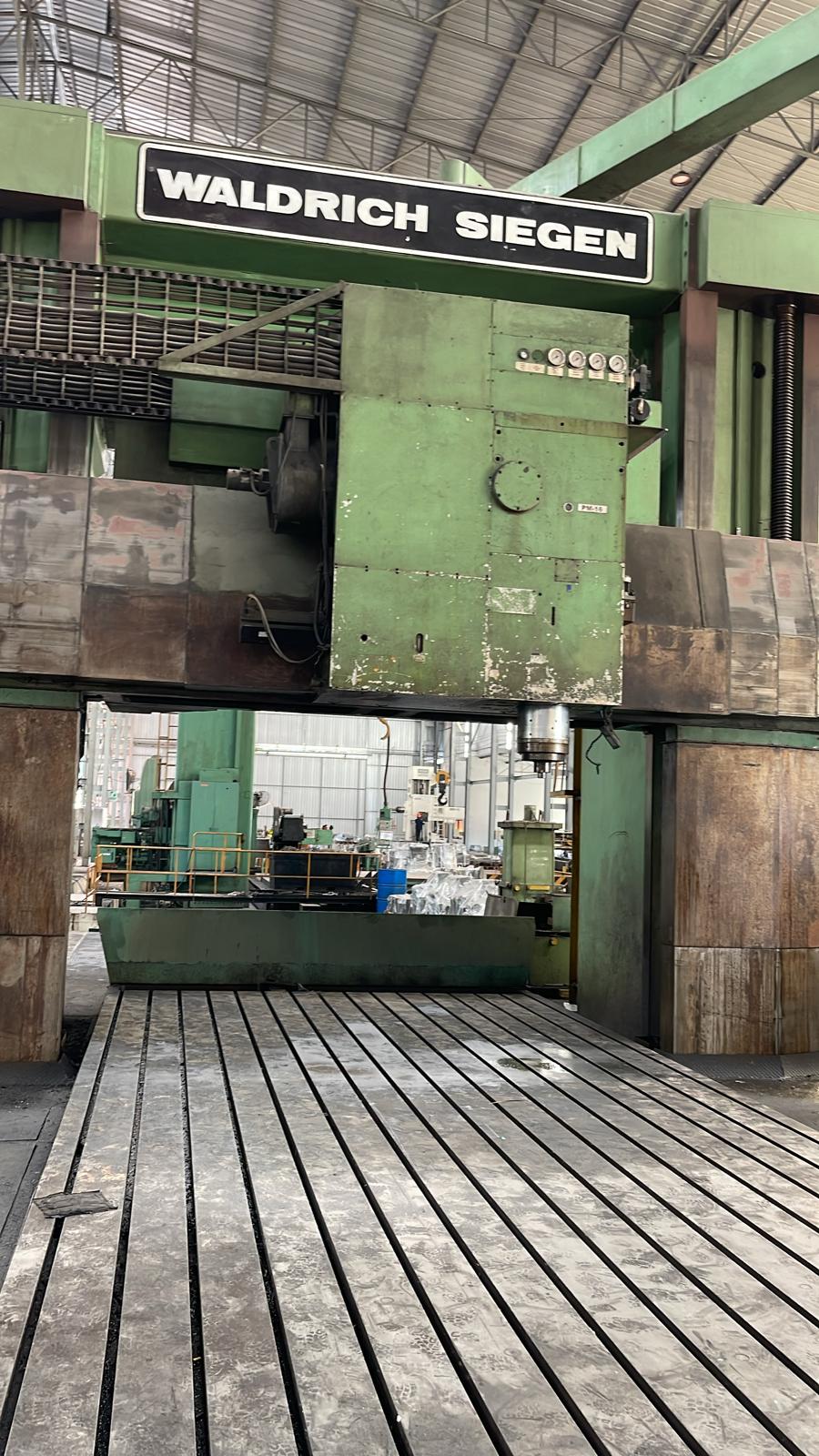

NC CONTROL DOUBLE COLUMN PLANO MILLER MACHINE 13M X 4M TABLE WALDRICH PF-H-150
MACHINE MORE INFORMATION
| Machine | NC CONTROL DOUBLE COLUMN PLANO MILLER MACHINE 13M X 4M TABLE |
| Brand | WALDRICH |
| Model | PF-H-150 |
| Year | 1974 |
| Specification | TABLE WORKING SURFACE : 4000 X13000 TABLE MAX LOAD : 390 TONS DIST BETWEEN COULM : 4500MM MAX WORK PIECE HEIGHT 4000MM RAM STROKE 450MM MIN/MAX SPINDLE OVER TABLE : 500MM / 4000MM SPINDLE SPEED : 5-504 RPM RAM SPINDLE DIA 360MM TOTAL POWER OF MOTOR 207KW SPINDLE POWER DC 110KW TOTAL MACHINE WEIGHT 450 T |
