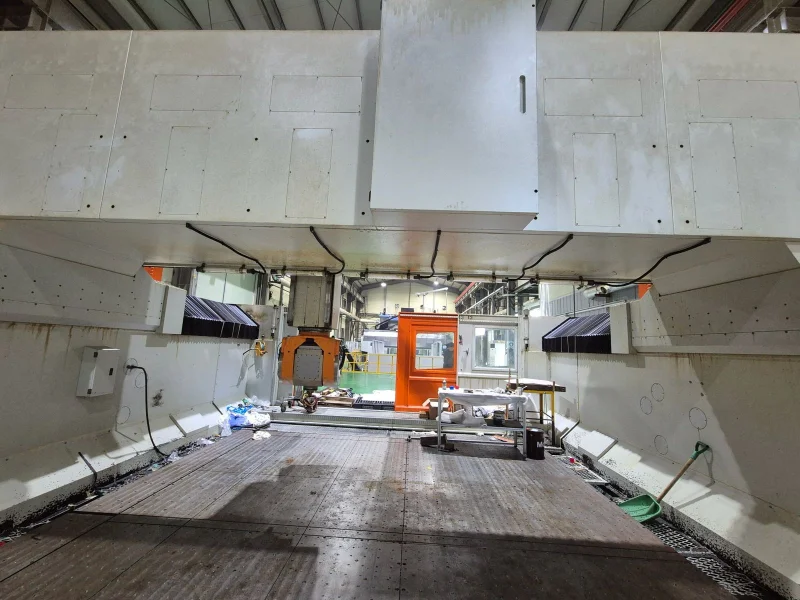

2018 year

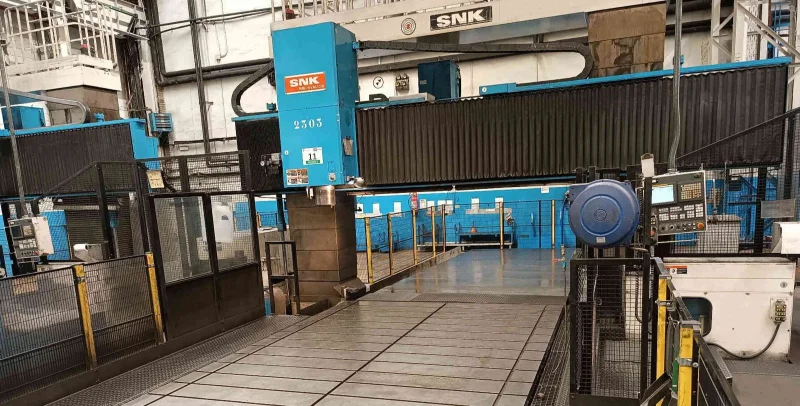

1. X STROKE 6,100MM2. Y STROKE 4,200MM3. Z STROKE 1,350MM4. BETWEEN COLUMN 3,500MM5. TABLE SIZE : 3,000 X 6,000MM6. SPINDLE SPEED 6,000 RPM7. CNC SYSTEM : FANUC 31iB8. ATC 409. 90 DEG. ANGLE HEAD (AUT

2005 year

FANUC 18I-TBTABLE 3,000MMMAX. SWING 4,000MMMAX. T/H 2,400MMRAM STROKE 1,250MMCROSSRAIL 1,800MM (200 X 9 STEP)ATC 12T

2016 year

Max. Workpiece dia. 800mmMax. Workpiece height 500mm Max. speed 10,000 rpm ATC 30 Table tilt (A-axis) 150 deg. Table indexing (C-axis) 360.000 deg. X/Y/Z 730/850/560

2016 year

Max. Workpiece dia. 850mmMax. Workpiece height 500mm Max. speed 18,000 rpmATC 30Table tilt (A-axis) 150 deg.Table indexing (C-axis) 360.000 deg.X/Y/Z 630/1100/600

2011 year

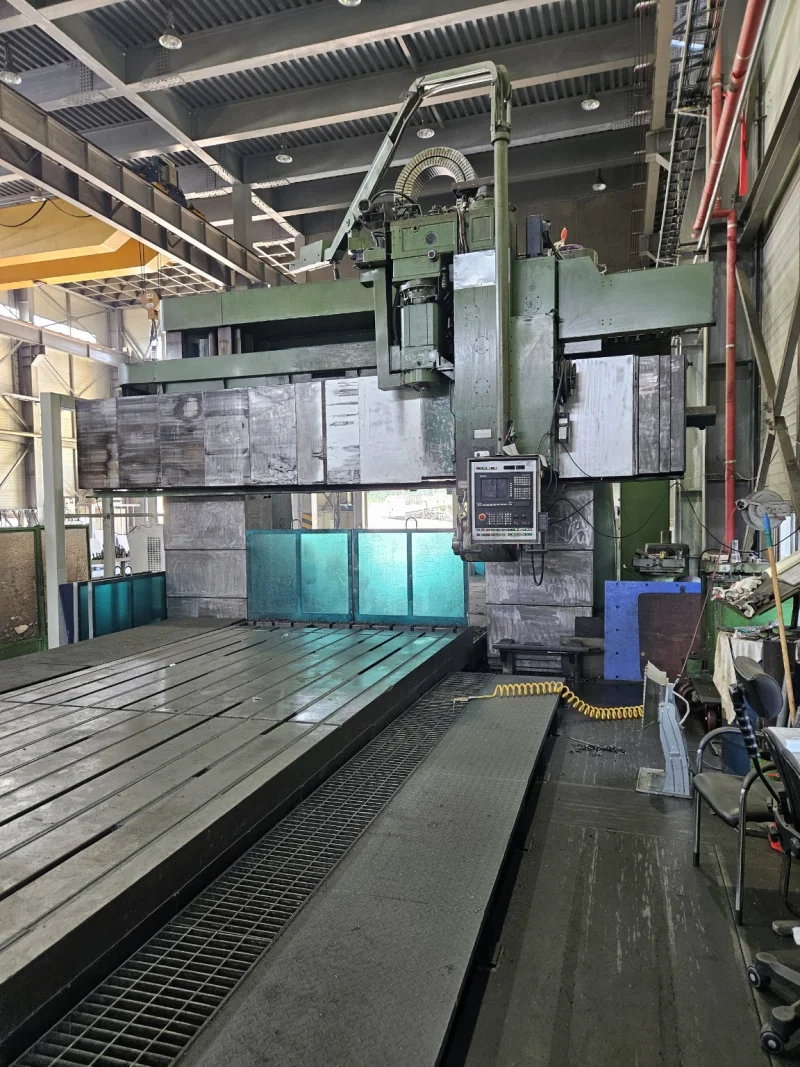

X STROKE 5,100MMY STROKE 3,400MM Z STROKE 1,070MMBETWEEN COLUMN 3,600MMTABLE SIZE : 3,000 X 5,200MMSPINDLE SPEED 6,000 RPMCNC SYSTEM : FANUC 18iMBATC 40 90 DEG. ANGLE HEAD (Manual

2010 year

max diameter 800mm

2009 year

Largest workpiece diameter: 1050 mmNormal module range:6 mm-23 mmReference cone angle setting range: -5°-+90°Axis displacement above center / below center: ± 150 mm/± 100 mmSpiral angle to be ground (

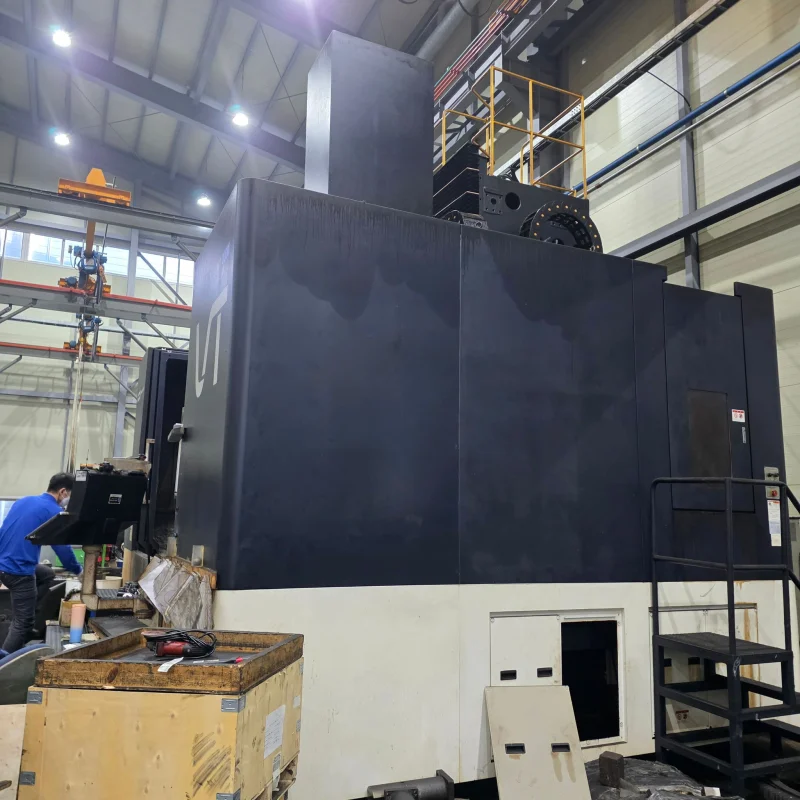

2011 year

Table 2000Swing 2650Max. Turning dia. 2500Max. Turning height 2100Z stroke 1000W stroke 1100Ram size 250 x 250Spindle motor AC 60/75kwSpindle speed Max. 240 rpmC axis indexing 0.001C axis speed 2 rpmM

2004 year

FANUC 21iTBX/Z axis 470mm x 3235mmC axis indexing 0.001 deg. Max. Swing Ø1030Swing over cross slide Ø800Max. Turning dia. Ø900Between center 3200 mmDraw tube dia. Ø164Spindle bore Ø181Loading cap

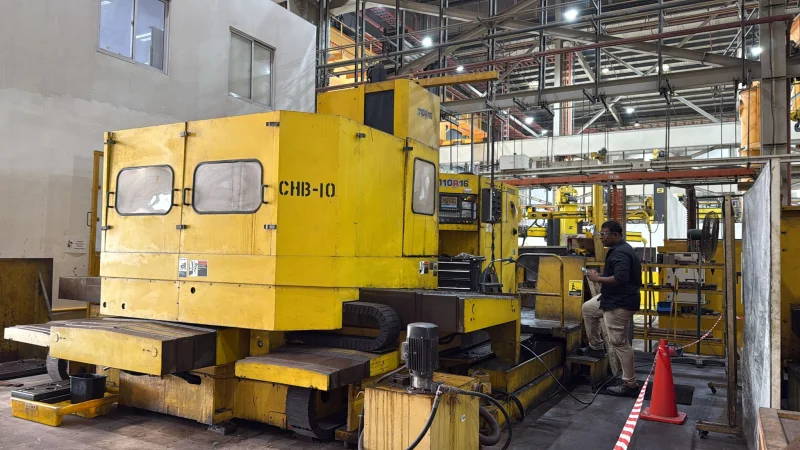

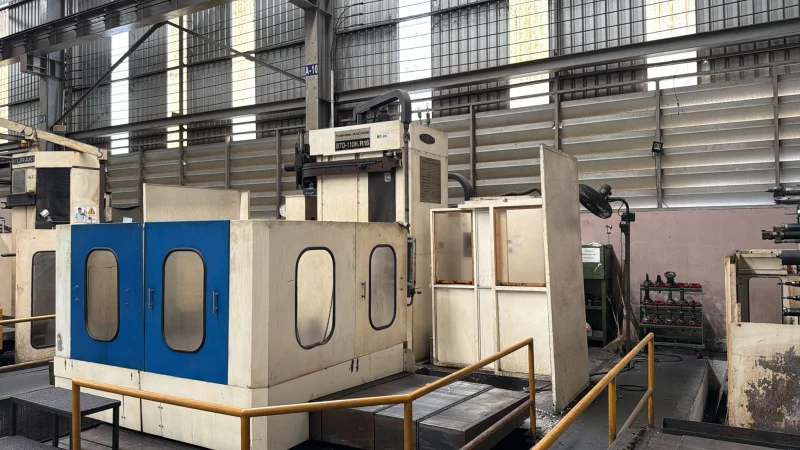

2005 year

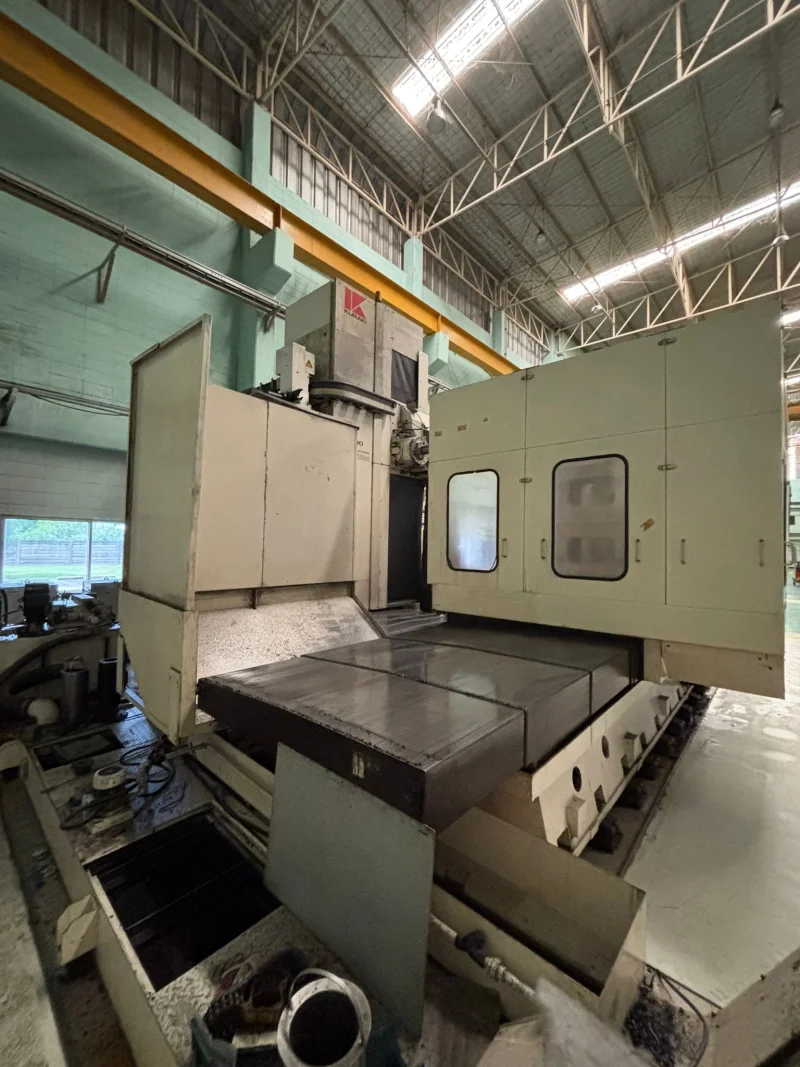

CONTROLLER TOSNUC 888, Table: 1000x1000Table Index: 0.0001mmTravel: 1500mm x 1200mm x 700mmSpindle travel : 400Dia: 110mmSpindle: BT50ATC: 54 stations
