2004 year

Manufacturer: HARTFORD Year: 2004 XYZ: 5300*3400*820  HARTROL-FANUC A1300 ATC: 40 toolsBT-50 AAC: 1 (manual) RPM: 6000 (GEAR TYPE) TABLE: 5200*3000 Passing width: 35

2004 year

X-axis 3060, Y-axis 1600, Z-axis 760 Passing width 1700 Table size: 1500 X 3250 Z-axis passing height: 200~960FANUC 18i-MB, Tool: BT50, 6000RPM ATC -60tools, Linear scale

2005 year

X-axis 3050, Y-axis 2100, Z-axis 920 Table Size: 3200 X 2040FANUC 18i-MB, , Data Server, Auto Power Off, BT50, 6000RPM (Gear Type), ATC 42tools Spindle Oil Cooler, 3-axis Linear Scale,

2017 year

Fanuc  31iWidth 2300 Table  2000x4000 X4230   Y2950   Z1100 8000RpmATC-60universal head,through spindle coolant 30 bar

1990 year

SNK   HF-6M     1990  retrofitted  FANUC-15MTable  3000X8000Width  3600Heught   30009000x4200x1000x2000 1500 rpm AAC: 4   90 degree head aut

2010 year

Year 2010Bet. Columns 3500Table 2500 x 6000ATC406000 rpmScaleAngle head 90 deg. 5 deg. Index)

2008 year

1.X STROKE 6,5002. Y STROKE 4,0003. Z STROKE 8004. W STROKE 1,3005. BET. COLUMN 3,5006. HEIGHT 1,9507. TABLE 3,000 X 6,3008. TABLE LOAD 37,000 KGS9. MAX. 4,000 RPM10. OSP SYSTEM11. ATC 7212. AAC 2 POT

2011 year

X STROKE 6,7002. Y STROKE 3,0003. Z STROKE 6504. W STROKE 1,0005. BET. COLUMN 2,5506. HEIGHT 1,6507. TABLE 2,500 X 6,5008. OSP SYSTEM9. ATC 7210. AAC 2 POTS11. 90 DEG. ANGLE HEAD

2018 year

BETWEEN COLUMN 1,700MMHEIGHT : 950MM TABLE SIZE : 1,400 X 3,000MMXYZ : 3,200/1,600/800MMSPINDLE SPEED 6,000 RPM(Geartype)CNC SYSTEM : FANUC 0iMFATC 40AICCBT.50

2006 year

X STROKE 5,250MM Y STROKE 4,000MMZ STROKE 600MMW STROKE 1,400MMBETWEEN COLUMN 3,200MMTABLE SIZE : 2,500 X 5,300MMSPINDLE SPEED 3,000 RPMCNC SYSTEM : FANUC 18I-MBATC 4090 DEG. ANGLE HEAD (5 DEG IN

2017 year

Retrofitted in 2017Control Fanuc 18i-MBX 8000 mmY 3800 mmZ 1000 mmW 1500 mmTable 7000 x 2500 mmColumn Distance 2950 mmSpindle Speed 1200 RPMTool type BT 50Heads Angle Head x 2Universal HeadExtension H

2017 year

Control Fanuc Oi-MFX 4020 mmY 2000 mmZ 800 mmTable 4100 x 1800 mmColumn distance 2100 mmLoad capacity 12000 KgTable top to crossrail 1300 mmTable top to spindle end 1200 mmSpindle 6000 rpmSpindle moto

2008 year

XYZ 8000/4000/1000Between columns 4800Max. 4,000 rpm (Gear type)Fanuc 18iMBATC 32AAC90deg. angle head

2004 year

Gantry typeTable 3800 x 6000Between columns 4800Fanuc 18iMB6000rpm (built-in spindle)Auto head change & index 5 deg. *72 POS.90 degree angular head

2005 year

SNK   HF-6M  FANUC-15M (retrofited) Table   3000X8000Width  3600Height  2700Z stroke  :10001500 RPMAAC:4ATC:80

2011 year

Between columns 3600Table 3000 x 5200Height 1430XYZ 5100/3400/1070BT. 50Spindle speed Max. 6000 rpmFanuc 18iMBManual 90 angle headATC

2004 year

X - 6000MMTable 3800 x 6000GANTRY TYPEBetween columns 4800Fanuc 18iMB6000rpm (built-in spindle)Auto head change & index 5 deg. *72 POS.90 degree angular head

2018 year

1. X STROKE 6,100MM2. Y STROKE 4,200MM3. Z STROKE 1,350MM4. BETWEEN COLUMN 3,500MM5. TABLE SIZE : 3,000 X 6,000MM6. SPINDLE SPEED 6,000 RPM7. CNC SYSTEM : FANUC 31iB8. ATC 409. 90 DEG. ANGLE HEAD (AUT

2011 year

X STROKE 5,100MMY STROKE 3,400MM Z STROKE 1,070MMBETWEEN COLUMN 3,600MMTABLE SIZE : 3,000 X 5,200MMSPINDLE SPEED 6,000 RPMCNC SYSTEM : FANUC 18iMBATC 40 90 DEG. ANGLE HEAD (Manual

2021 year

 6,000rpm. ATC-40   BT 50 FANUC-0iMF. Table : 4,000× 2,600Stroke :  4,100 × 2,700 x Z  900. Column width  2,800.Work weight  18ton. AAC 1 EAChip

2008 year

XYZ 8000/4000/1000Between columns 4800Max. 4,000 rpm (Gear type)Fanuc 18iMBATC 32AAC90deg. angle head

2008 year

Between column 3700Height 3500Table 3000 x 8000XYZW 8000/3900/2500/750Max. 5000 rpmFanuc 18iMBExtension head (Manual)Universal head (Manual)90 angle head (Manual) x 2

2012 year

AWEA LP-4025Y YEAR 2012, X-4000/Y-2500/Z -760MM, BETWEEN COLUMN 2700MM, TABLE 2400 X4200MM,  SPINDLE 6000RPM, FANUC18I-MB, ATC 60, BT 50,  9 DEG INDEXING HEAD (5 DEG INDEX) AND C AXIS

2007 year

X 5000 AND Y 2500, ANGULAR HEAD, FANUC 18i-MB, COOLAN TANK , CHIP CONVEYOR

2016 year

X 3000MM , Y 2000MM , C AXIS, ANGULAR HEAD , FANUC Oi-MF, COOLANT  TANK, CHIP CONVEYOR

2009 year

X 6000 , Y 3300, AND WITH ANGULAR HEAD AND C AXIS, FANUC 18i-MB, COOLANT TANK. CHIP CONVEYOR

2014 year

Between columns 4000Height 3550XYZW 10250/5000/1000/2500Table size 3000 x 10300Max. Load 50,000 kgsSpindle speed 2500 rpmSpindle motor AC 30/37kwFanuc 31iB** Optional accessories Automatic tool c

2008 year

X AXIS - 15000MM, Y AXIS-10000MM, Z AXIS 3800MM, SPINDLE MOTOR 45/55KW, SPINDLE TAPER BT 80, CONTROLLER FANUC 18i-MB, ATC 80 TOOLS

2005 year

 X - 3000mm, Y- 2100mm, Z-760mm, Between column : 2700 mm , Table : 3020 x 2010mm , spindle , 6000 rpm, Bt50, Table load 10 tons , . , ATC , coolant tank, chip conveyor.

2010 year

System OKUMA OSP-P200MBet. Columns 3050mmXYZW8000/3700mm/800mm/1300mmTable 7800mm x 2500mmMax. Load 52TonSpindle speed 10 ~ 4000RPM (2Step)Spindle bearing inner dia. 100mm100ATC #50AC motor 30 / 22KwF

2019 year

X 6250, Y 3700 + 850MM FOR AAC, Z 800MM, W 1450MM, BETWEEN COLUMN 3000MM, HEIGTH 2550MM, TABLE 2500X5000MM, SPINDLE RPM 6000, FANUC 31iB, ATC 60POTS, AAC, LINEAR SCALE (XYZ axis)

2005 year

Sigma SDV-5229 year 2005XYZ 5200/2900/1000Between column 3000Pallet 2700 x 5000Max. 6000 rpmBT. 50Fanuc 18iMBATC 16Angle headExtension headNC scale

1972 year

Table working surface  4000x 13000mmTable length 14000mmMax traverse of table 13700mmmin /max height of spindle over table 500mm/ 4000mmDistance between column 4500mmQuill dia 360mmQuill travel 4

1992 year

XYZW 9700/3100/1500/3500Between column 3,100Table size 3000 x 10,000Siemens 840DAttachments 6 nos.

2007 year

- Fanuc 18i-MB- T : 2,700 x 5,000- Bet. Column : 3,000- Height : 1,300- X/Y/Z : 5,200/3,000/1,000- 4,000 RPM- ATC : 20* 90 deg. Angle head* Data Sever.* X axis scale

2008 year

HF-7MCNC : FANUC.OPTION :ㅡ.TAPER : BT50ㅡ.TABLE SIZE 8,000×3,500ㅡ.BET. COLUMNS: 4,000ㅡ.SPINDLE SPEED: 30~3,000RPMㅡ.ATCㅡ. AAC(90° ANGULE ATTACHMENT, EXTENSION HEAD)ㅡ.LOAD: 30,000Kgㅡ.STROKE : 8,250×4,700

2017 year

Controller: Fanuc 0i-MFXYZ travel: 6700/2700/1020Table sizes: 6000x1800Column distance: 2100Spindle (V)  nose to table: 1140Spindle type: BT50Spindle speed: max 6000 with H/L gearATC: 32 tool, wi

1992 year

XYZW 9700/3100/1500/3500Between column 3,100Table size 3000 x 10,000Siemens 840DAttachments 6 nos

2016 year

X-axis travel mm 5050Y-axis travel mm 2100Z-axis travel mm /1070(op)Spindle end to table mm 225-1005-225-1295(op)Spindle center to machine column mm 430Distance between double columns mm 2300Workbench

2009 year

 XYZA 6250/2900/600/1400Between columns 2900Table 2500 x 6000Fanuc 18iMBATC 60Universal headAAC

2010 year

Between column 3,600mmTable 3,000×6,000mmXYZ 6,050×4,400×1,070mmBT50 6,000rpm(Gear type)A.T.C: 40TAAC90 deg. Angle head. 5 deg. IndexingFANUC-18i-MB

2017 year

XYZ 4,200/2,300/1,000BETWEEN COLUMN 2,400TABLE SIZE 2,050 X 4,000SPINDLE SPEED 6,000 RPMATC 4090 DEG. ANGLE HEAD (5 DEG INDEX.)FANUC 0I-MF

2010 year

XYZ 4,000/2,500/760BETWEEN COLUMN 2,700TABLE SIZE 2400 X 4000SPINDLE SPEED MAX. 8,000 RPMATC 32FANUC 18IMB

2006 year

XYZ 3100/2100/1070Bet. Column 2400Table 2040 x 3200ATC 40Max. 6,000 rpmFanuc 18iMBManual angle head

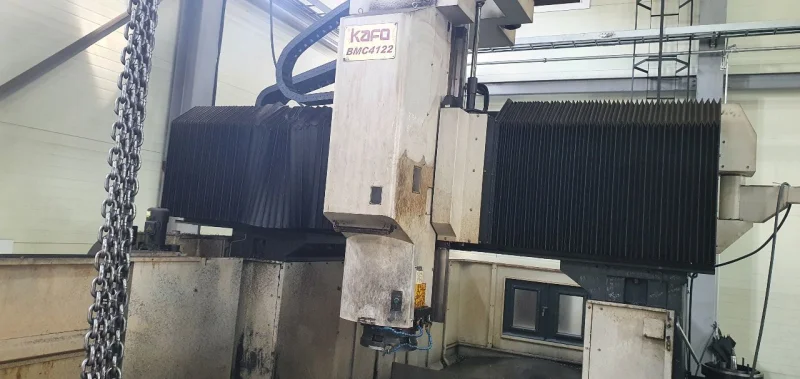

2015 year

KAFO BMC-4122Year 2015F-31iBATC:40Table 4000×2100Between columns 2300Spindle BT50/6000rpmXYZ/4100,2200,900Option-90 deg. Angle head manual-Data server-AICC-Chip conveyor-Air blow-Auto. Power Off

2008 year

- CNC : Fanuc 18i-MB- Bet. Columns : 2,500 mm- Height : 925 mm- X/Y/Z : 4,200/2,400/760 mm- T : 2,200 x 4,000 mm- S : 6,000 RPM(BT-50) - ATC : 24- Manual 90 deg. Angle Head.all axis lm guide ways

2013 year

2012 year

2005 year

CNC: Fanuc 18i-MB- Between columns : 3,200 mm-XYZ 6,000/3,900/1,000 mm- Table: 2,400 × 6,000 mm- Spindle : 6,000 RPM (BT-50)- ATC: 60- AAC: 1

2018 year

Table 2200 x 6000XYZ 6000/2800/1400Between column 2850Max. Load 24TATC 32EAFanuc 31iBAngle head

2005 year

Between columns 2700Angle headATC 32

1997 year

XYZW 12000/5000/1500/2200Table 4200 x 12000(50T)Spindle speed Max. 2000 rpmAC 45/55kw {73Hp)Fanuc 15MATCAngle head

2009 year

XYZ 5200/2400/1000Table 2200 x 5000Bet. Columns 2500Max. 6000 rpmATC 40Fanuc 18iMB

2011 year

year 2011Table 3000/50005100/3400/820Angle head BT506000rpm

2009 year

XYZW 4250/3200/700/1100Bet. Columns 2700Table 2200 x 4100Max. 6000 rpmAC 22/25kwFanuc 31iAATC 40Linear scaleExtension head

2007 year

5-FACES DOUBLE COLUMN MACHINE MACHINE CENTERMAKE:HARTFORDMODEL:HSA-5320VFTABLE:5200*2100mmTRAVEL:X5050 Y3200 Z1100CONTROL:FANUC CAI300ATC:90pcs

2006 year

XYZW 6250/5000/600/1600Between columns 4200Table 3000 x 6300Max. Load 30,000 kgsMax. 6,000 rpmAC 22/25kwFanuc 18iMBATC 40AACRight angle headExtension head

2018 year

Year: 2018.CNC: Fanuc 31i-Model B-X/IZ: 4,000/3,600/1,000 mmBet. Columns : 3,600 mmHeight : 1.310 mmTable Size : 3,000 x 4,000 mm-Spindle: 8,000 RPM (Gear-Type)Spindle Taper : BT-50 (18.5/22 kW)-ATC:

2015 year

- ⁠- CNC: Fanuc Oi-MF-Bet. Columns : 2,700 mm-Height : 1.270 mm- Table : 2,450 x 4,200 mm-X/Y/Z: 4,200/2,600/1,020 mm- B-Axis Index : 5°- C-Axis Rotation : ‡360° (Index:5°)- Spindle : 6,000 RPM (Gear

2008 year

Vision wide VH-6230(2008)- CNC: Fanuc 18i-MB-Bet. Columns : 3,000 mm-X/YIZ: 6,200/3,000/1,000 mm- T: 2,600 × 6,000 mm-S : 10,000 RPM (28 tons, 26kw, BT-50)- ATC: 40* Data Server.* 3-Axis Linear Scales

2007 year

CNC: Fanuc 18i-MB-X/Y/Z: 5,200/2,600/920 mm- Bet. Columns : 2,700 mm-T : 2,050 X 5,200 mm (15 tons)- S: 8,000 RPM (Built In, BT-50, 22kw)-ATC :40-90 deg. Angle head

2003 year

XYZ 4000/2500/760Bet. Columns 2700Table size 2400 x 4000Spindle speed 8000 rpmFanuc 18iMBATC 32Manual angle head

2020 year

Model:BMC-3012Travel X-axis:3,100mmY-axis:1,200mmZ-axis:800mmTable Dimension:3,000x1,100mmMax. Loading:5,000kgSpindle Speed:6,000rpmRapid Speed(X/Y/Z):20/20/15m/minNo. of Tool:40eaFANUC ColtrollerChip

2013 year

Year 2013F-31i-M BATC:40Table 4000×2100Between columns 2300Spindle BT50/6000rpmXYZ/4100,2200,900Option-90 deg. Angle head manual-Data server-AICC-Chip conveyor-Air blow-Auto. Power Off

2012 year

XYZ : 4000/2700/760MM , TABLE 4040X 2400MM, BT50, 60 TOOLS

2011 year

X/Y/Z  4200/2400/760Table 2200 x 4000Fanuc 18iMBATC 40BT50

2006 year

Fanuc 18i-MB/RPM 6000XYZ 3200×1600×800Fanuc 18iMB ATCRight angle head

2009 year

XYZW  3050/3200/1100MMSPINDLE 3500 RPMBT50A INDEXING 360 DEGPALLET SIZE 3200 X 2100MMATC 60 TOOLSFANUC F18 IMB

1993 year

　1993年製　NⅭ:FANUC15M　ATⅭ80　BT50　with attachment 3pcs  X4300　Y300+1800+600　Z1000mm　table size:4000*1500mm  spindle speed:6000spm WITH ANGULAR Heads

2008 year

XYZ - 4200 X 2900X1000MMTABLE - 4000 X 2700MMDISTANCE  B/COLUMNS 3000MMMAX LOAD ON TABLE 17000KGSPINDLE 6000 RPMTOOL TYPE BT50ATC 30 TOOLS2 X HEAD CHANGECHIP CONVEYORHEIDENHAIN SCALE

2015 year

WITH 500 TOOLS FREEWith full options6250/3700/700/1100Height 3200Distance between columns 3200Table size 2700 x 6100Fanuc 31iBOptionsLinear scale(XYZW)Ballscrew cooling system(XYZ)Universal head(1 deg

1974 year

TABLE WORKING SURFACE : 4000 X13000 TABLE MAX LOAD : 390 TONS DIST BETWEEN COULM : 4500MM MAX WORK PIECE HEIGHT 4000MM RAM STROKE 450MM MIN/MAX SPINDLE OVER TABLE : 500MM / 4000MM SP

2009 year

Controller: FANUC 18iMBX/Y/Z axis travel: 6,000/4,000/1,000Spindle nose to table surface: 590-1Dist. Between columns: 3,500mmTable size: 6,000x3,000mmSpindle Speed: 4,000rpm (Gear type BT50 / 60ATC)Ma

1990 year

X-axis: 1500 mm Y-axis: 800 mm Z-axis: 508 mm BT50 SPINDLE 3150RPM ATC 32T MAX TABLE LOAD 2,500KG LINEAR SCALE ALL 3 AXIS

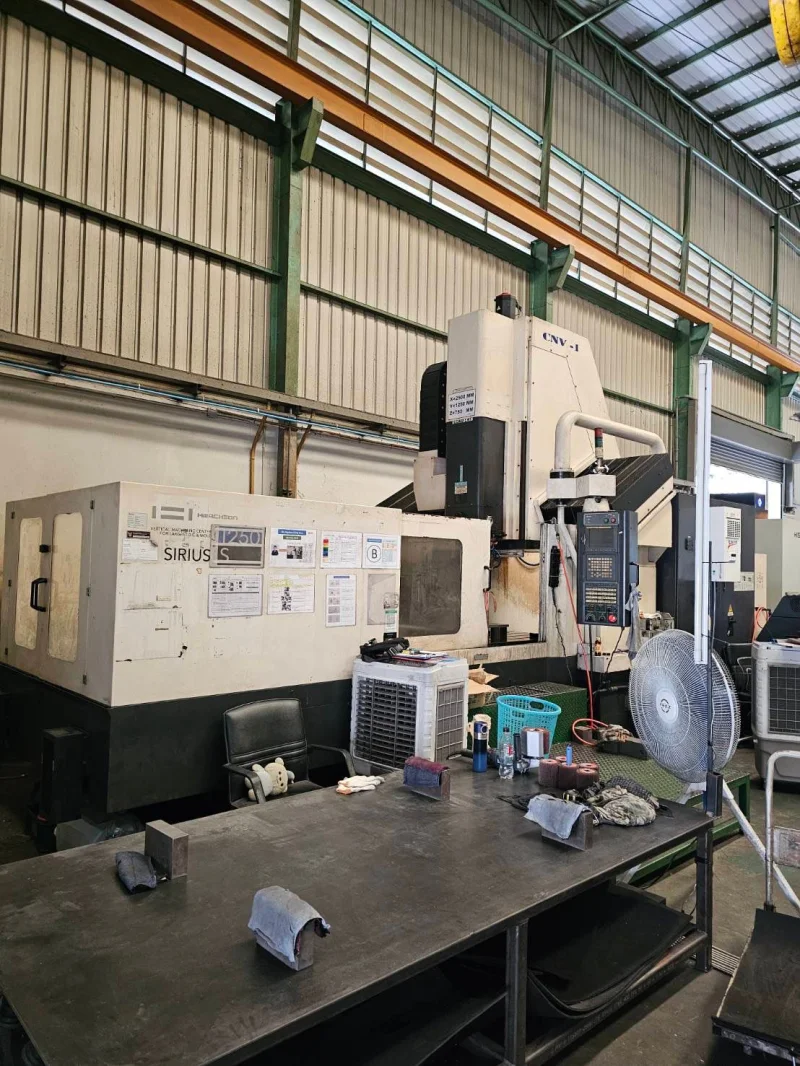

2003 year

Hwacheon Sirius 1250 year 2003 XYZ 2500/1250/750 Table size 2800 x 1250 ATC 40 Fanuc 18iMB

2013 year

 MACHINE SPECIFICATIONS Qty: 1 machines MAKE  Monford Model FS3220 YEAR 2013 x axis 3200mm

2018 year

Vision wide NF-4233AC3 FANUC-0i-MF Between center 2,700mm Table 4,200×2,450mm Height 1,200mm XYZ 4,200×3,300×920mm BT50/6,000rpm ATC: 40T angle head AAC

2006 year

GOOD WORKING CONDITIONS

2018 year

Fourstar FD-2860 year 2018 Table 2200 x 6000 XYZ 6000/2800/1400 Between column 2850 Max. Load 24T ATC 32EA Fanuc 31iB Angle head

2007 year

MODEL : Year 2007 Travel(X x Y x Z x W) : 8200x4200x1000x1000mm Table Size : 8000x3000mm Table Load : 32000kg Dist. Between Columns:3500mm      Spindle Nose To Table : 250~225

2007 year

Mitsubishi MVR25 5 Face milling 3200x2500x1650mm

2007 year

Controller: FANUC 18i MBX/Y/Z axis travel: 4,000/2,500/1,000mmDist. between columns: 2,700mmDoor height: 1,400mmTable size: 2,400x4,000mmMax. Table load: 15,000 kgSpindle speed: 4,000rpm (Gear)BT50 /

2013 year

VMC CNC DOUBLE COLUMNMakeAPEC- TAIWANModelMT 2862YEAR2014Controller iTNC530  HeidenhainX 6200mmY 3400 mmZ 1100mmSpindle taper HSK 100AATC32Spindle RPM12000TABLE DIMENSION

1997 year

Table 8000 x 3500mmMax weight on table20 tonsbetween column4000 mmlongitudinal travel8024 mmTransverse travel4700 mmCONTROLLERSiemensSPINDLE SPEED1800 RPMSPINDLE TAPERBT50ATC40COOLANt TANKYESCHIP

2006 year

 4000x2000 ,Angular head Available Fanuc 18iMB , column to column 2.5m ,High low gear spindle , ATC 40 , BT50 , machine in Taiwan

2000 year

Mitsubishi Double Column VMC (More Height)Table : 3000 x 1350mmBetween Column : 1500mmX Axis : 3000mm Y Axis : 1500mmHeight 1500 W Axis : 550mm With:Fanuc 18M ControlChip Conveyor

2015 year

FANUC-0i-MFBetween center 2,700mmTable 4,200×2,450mmHeight 1,200mmXYZ 4,200×3,300×920mmBT50/6,000rpmATC: 40TAuto. (3+2-axis) angle headC-axis/B axis 5 deg indexAAC

2020 year

XYZ 4100/2200/900Table size 4000 x 2100(17T)Between columns 2300AC 22/26kwMax. 6000 rpmBT. 50Fanuc 0iMFATC 40Right Angle head (Manual indexing)AACChip conveyo

2006 year

XYZW 6250/5000/600/1600Between columns 4200Table 3000 x 6300Max. Load 30,000 kgsMax. 6,000 rpmAC 22/25kwFanuc 18iMBATC 40AACRight angle headExtension head

2007 year

Between columns 3600XYZW 7000/4600/710/1250B axis -100deg. ~ + 100 deg. C axis +- 180 deg. Spindle speed 10,000rpmB,C axis index 0.0001 degBT. 50ATC 60

2003 year

XYZW 14000/4000/1000/3250Distance between columns 4500Table 3000 x 7000 x 2 nos. Spindle motor 75kwAAC 12 potsSiemens 840

2020 year

KAFO BMC4122Year 2020XYZ 4100/2200/900Table size 4000 x 2100(17T)Between columns 2300AC 22/26kwMax. 6000 rpmBT. 50Fanuc 0iMFATC 40Right Angle head (Manual indexing)AACChip conveyor

2022 year

X 6250 Y 3500 Z 1100Table 2500 x 6000Fanuc 31iBATC 40Right angle head(Auto. Index)Extension headAAC

2017 year

XYZ 4000/3500/1000Table 2500 x 4000Max. Load 12,000kgsTable top to spindle end 350-1350mmBetween columns 2800mmMax. Spindle 6000 rpmSpindle motor AC 26/35kwCNC Hartrol Plus P1ATC 40Data server + 200 b

2018 year

Table Size    2,500 x 5,000 mmX Axis 5,200 mmY Axis 3,500 mmZ Axis 800 mmW Axis 1,300 mmSpindle Speed    20 - 8,000 rpmSpindle Taper    7/24 Taper No 50Spi

2010 year

Table : 4000 x 2000Stroke : 4200 x 2600 x 920Distance between Column 2600RPM 600090 degree Manual Angle HeadCONTROLLER : FANUC Seried 18i-MB

2007 year

X - 3000 MMY - 2000MMZ - 1000MMSPINDLE RPM - 8000 RPMSPINDLE TAPER BT50ATC - 40 TOOLSCONTROLLER FANUC 18i-MB

2016 year

X TRAVEL - 4060MMY TRAVEL  - 2150MMZ TRAVEL - 1000MMA AXIS TRAVEL - 110 DEGREEC TRAVEL - 360 DEGREETABLE SIZE X  DIRECTION - 4000MMTABLE SIZE Y DIRECTION - 2000MMTABLE LOAD CAPACITY 15000 kg

2021 year

Siemens SINUMERIK 840D Solution Line T:8000*4500mm Door width 5600 Spindle end to work table 800-4400mm XYZW:8000*6500(including tool change)*1600*2000 ATC60 Spindle BT50 5000rpm Spindle center water

2020 year

FANUC31i-Model B BT50 gear head 3000 rpm 90 knives (vertical and horizontal knife change) T:10000*8000mm XYZ stroke: 10000*8000*1400 Spindle end to work table 1300~2700mm 90 degree head 5 degree split

2013 year

Make SNKModelDOUBLE COLUMN HGM 3500MFG date2013Distance between column4900 mmX axis Spindle head Longitudinal18000 mmY axis Spindle traverse 3500mmZ axis Ram Vertical1500mmB axis Spindle til

2008 year

CNC DOUBLE COLUMN MILLING MACHINE   Make TOSHIBA     ModelMPH 2630B     X: 3500mm     Y: 2600 mm ( Column

year

X AXIS 8500MMY AXIS 5000 MMZ AXIS 1495 MMCONTROLLER : FANUC 15M

2001 year

Control . Mitsubishi 65, coluor monitor.Pallet 600 x 600Index 1 degreeBT 50, ATC 50Coolant thru spindle.

2007 year

CNC HARTFORD DOUBLE COLOUM MILLING MACHINEMODEL:- PRW-426LTRAVAL SIZE:- 4000X2600X1600 MMFANUC CONTROLATC:- 40 TOLLSBT 50RPM:- 6000nMAKE:- TAIWANYEAR:- 2007

2015 year

§Model : NT 4250DCG/ 1500S§MFG Year: 2015§Controller : Fanuc-31iA5§Max. Swing 730 mm§Center distance : 1862mm§Chuck : 12 inch (main & sub)§Swing on cross slide : 730mm§Max work size : Dia 660 mm /
