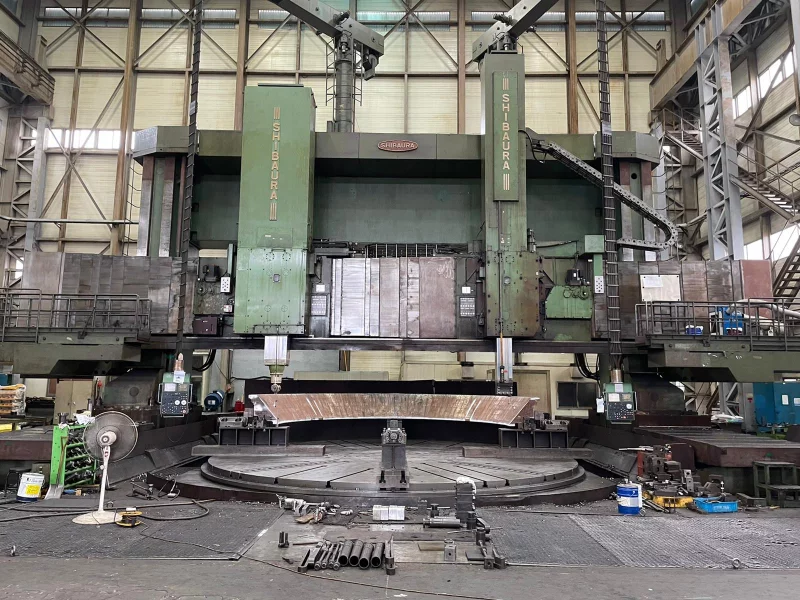

NC VTL Gantry Type (With C-Axis)
Make : Toshiba Shibaura
Model : TMG-10750S(NC)
Faceplate dia : 8000 mm
Swing dia : 10,000 mm
Turning height : 4350 mm
Max. Job load : 250 Ton
Table speed : 0.16 ~ 16 RPM
Table motor : 75 kW
Vertical ram travel : 2600 mm (Left)
Vertical ram travel : 1250 mm (right)
Max. Swivel of right ram : +/- 30°
Gantry Travel : 2500 mm (Forward / Backwards)
Milling spindle taper : ISO 50
Milling spindle speed : 3.15 ~ 630 RPM
Milling spindle motor : 55 kW
Approx. Floor space : 19329 (L-R) x 16993 (F-B) x 10668 (H)
Approx. Machine weight : 486 Ton
With Fanuc 18i-MB CNC (2001 year)
With Chip Conveyor
With Linear Scales
With C-Axis Table (Scale)
With Assorted Angular Milling Head
With Telescopic Steel Way covers
