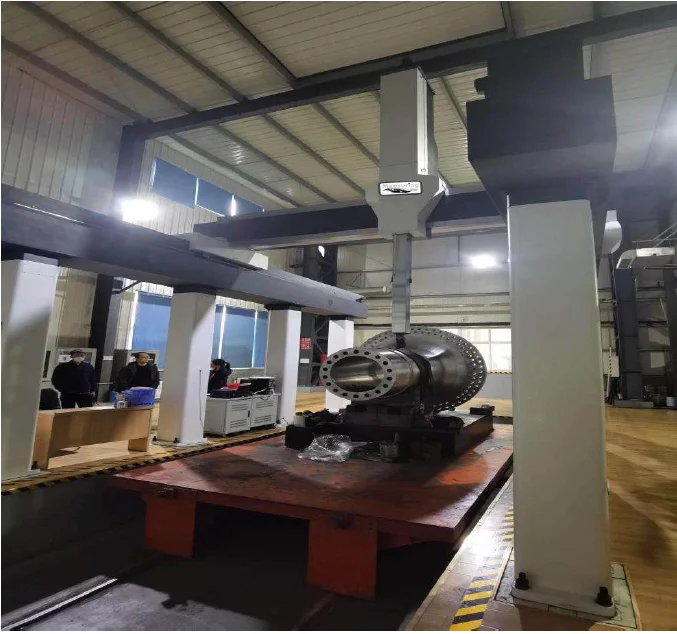

Moving Bridge Coordinate Measuring Machine (CMM) Measuring X.Y.Z ME-304020-CNC
MACHINE MORE INFORMATION
| Machine | Moving Bridge Coordinate Measuring Machine (CMM) |
| Brand | Measuring X.Y.Z |
| Model | ME-304020-CNC |
| Year | |
| Specification | Performance Specifications Measuring range: 3000x4000x2000 (X.Y.Z.mm) Max part weight: 2000 Kg up. Renishaw ENGLAND Resolution: 0.5 mm Environment Specifications Average room temperature: 20-22 °C Air supply system (Min air pressure): 1.8 MPa Voltage: 220 Vac ±10% Frequency: 50 Hz-60 Hz Current: 20 A Computer System 17 CPU, 16GB Ram, 1000GB Hard disk, 512MB Graphic Card, Key Board & Mouse 24² LCD Color Monitor Windows 10 O.S and Rational DMIS Measuring Software Other Specifications DC Serve Motor Pneumatic system made Synchronous Belt Drive System Precision Filter Full Screen and high soft cable towline Renishaw UCCT3 Controller 20mm Ceramics Calibrate Ball with Support Base User and System DCC Renishaw PH10T probe with TP20 probe system for ENGLANE Renishaw Probe Styli Kit for ENGLANE (1.2.3.4MM Styli Kit) |
