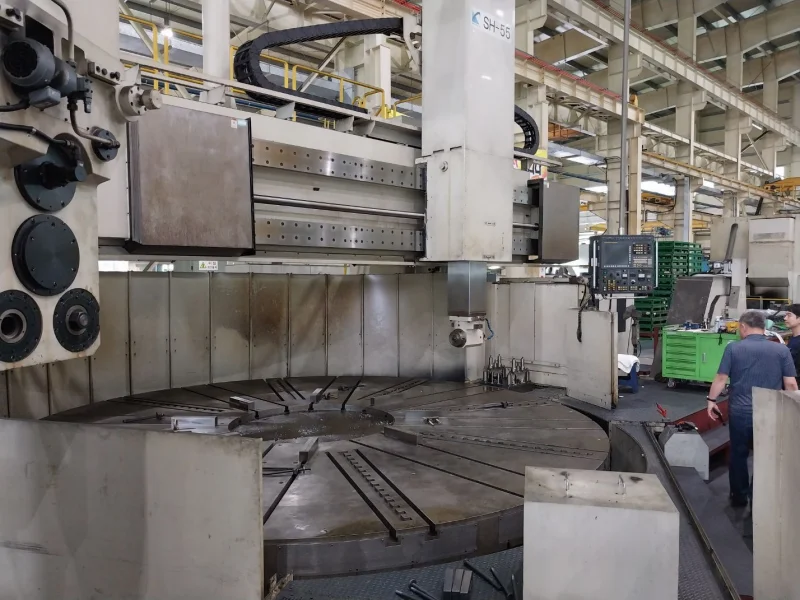

CNC VTL WITH GEAR HOBBING AND VTC SH-55 KOHCHIYAMA SH-55
MACHINE MORE INFORMATION
| Machine | CNC VTL WITH GEAR HOBBING AND VTC SH-55 |
| Brand | KOHCHIYAMA |
| Model | SH-55 |
| Year | 2014 |
| Specification | Gear hobbing machine function Table size : 3,740 mm Maximum Cutting Diameter : 5,500 mm Gear max tooth width : 550 mm Max. Modul : 32 Max. workpiece weight : 39,4 ton Cutter RPM : 10~150 rpm Column forward and backward movement distance : 2,060 mm Cutter diameters : 450 mm Cutter widths : 110 mm Cutter inner diameter : 80 mm CNC CONTROL : FANUC 31i MODEL B * Turnmill machine function Max. swing dia. : 6,200 mm Max. height : 1,550 mm Max. working height : 1,200 mm Max. working dia. : 5,500 mm Left and right movement amount of the cutting tool stand : 3,000 Ram up/down movement : 1,250 mm Table rpm : 3~15 rpm Spindle rpm : 15~1,500 rpm |
