MANUAL VTL 5000MM TABLE, SWING 7000MM, TURING HEIGHT 3700MM O-M table 5000

Machine

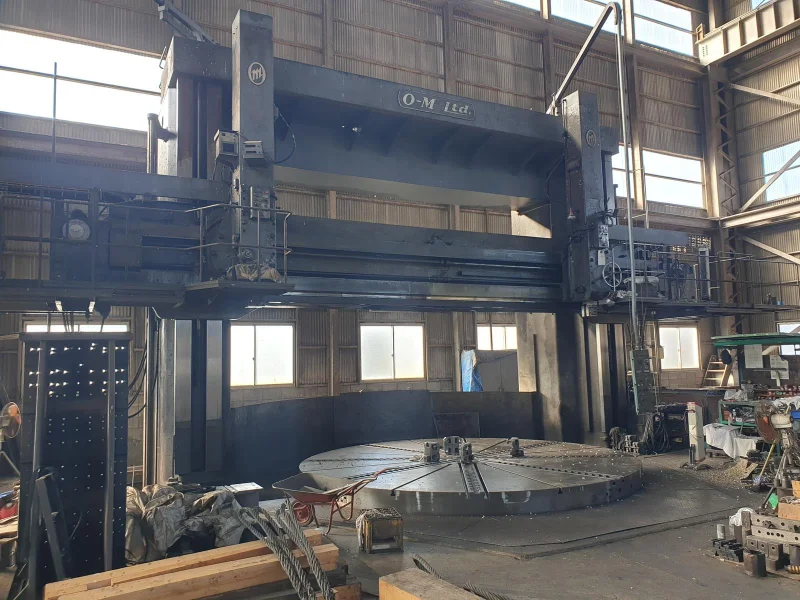

MANUAL VTL 5000MM TABLE, SWING 7000MM, TURING HEIGHT 3700MM

Brand

O-M

Model

table 5000

Year

2009

Specification

Table / Max swing	5000/7000
Maximum cutting height (Above table)	3700
Load on Table	60000
Saalbar up and down movement area	1800
Third par left and right diagonal flow	30 Deg
Left and right movement of the Lar bar	3675
Size of the tool bar that can be attached (Tool bar)	50x45
Max.Height between bottom of cross rail table	4000
Nor table speed conversion clause	16 Step
Table rotation speed	0.34~45 RPM
Toolbar feed conversion number	16 Step
Toolbar forwarding (Up/down, Left/Right, Field)	0.075~15 Rev
Quikly navigate through the tool bar (Up/down, Left/Right)	1800
Toolbar proximaty feed (Up/down, Left/Right Tilt)	725
Toolbar feed rate (Up/down, Left/Right Tilt)	3.7
Crossrail up/down movement speed	250
Main Motor	60X6 KWXP
Crossrail up/down movement motor	15X16 KWXP
Cross rail clamp motor	13x4 KWXP
Tool bar fast running motor	3.7x4 KWXP
Pump Morch	0.4x4.3 KWXP
Pressure pump motor	0.75x4 KWXP
Negative pressure pump motor	22x4 KWXP
Big	0.22x4 KWXP
Paul th biggest player in the east	110 KVA
